Primecom Level 3 Advertising Screen Electric Vehicle (EV) Charging Station

Name: Primecom Level 3 Advertising Screen Electric Vehicle (EV) Charging Station
Brand: PRIMECOMTECH
Price: 22000.0 USD
Availability: InStock

by PRIMECOMTECH

$22,000.00 - $34,000.00

$22,000.00

$22,000.00 - $34,000.00

$22,000.00

Quantity

Primecom Tech

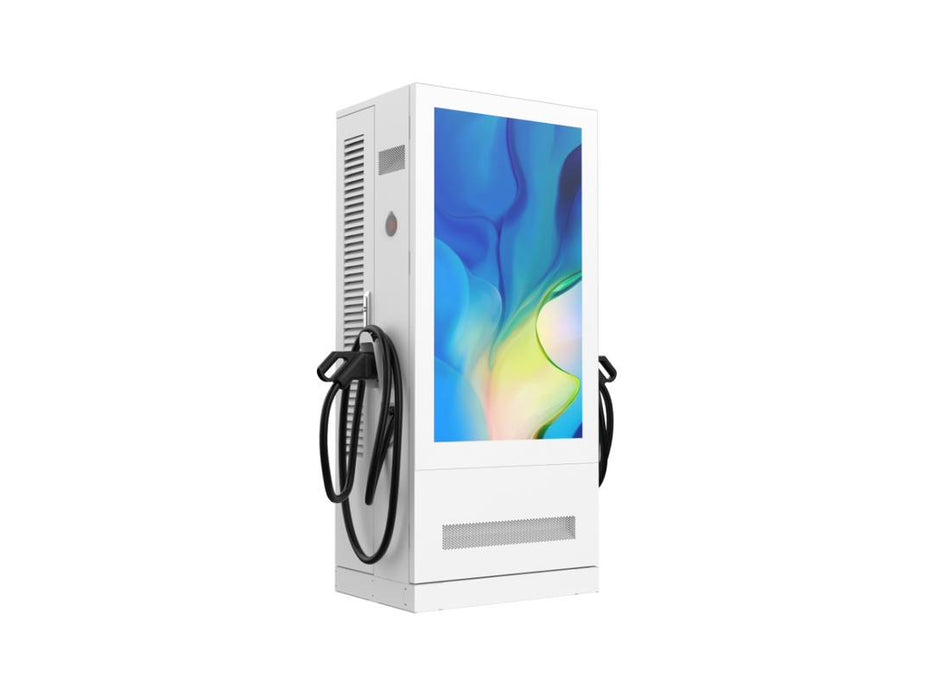

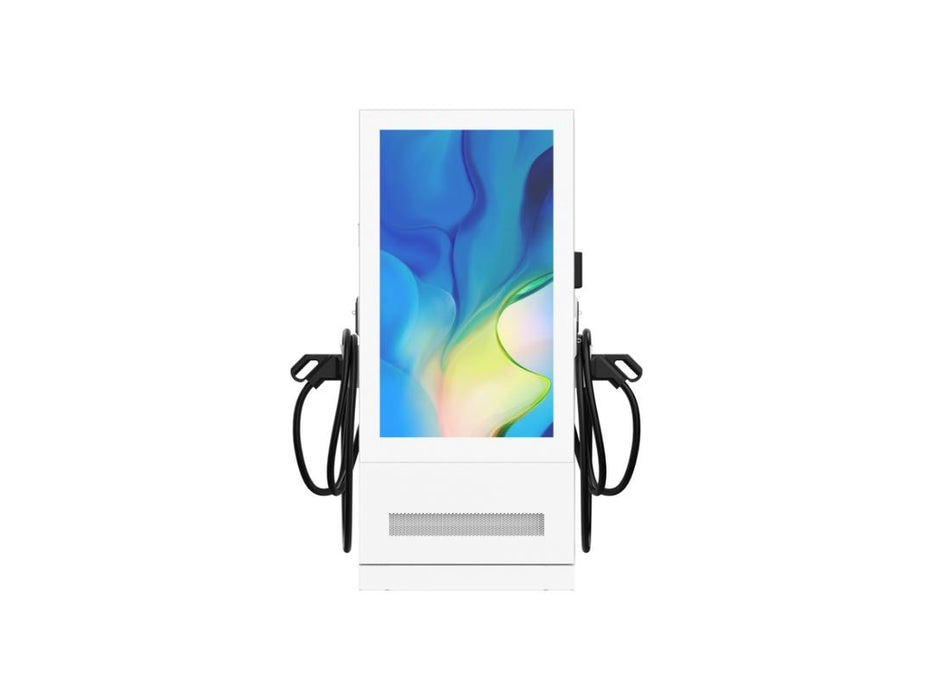

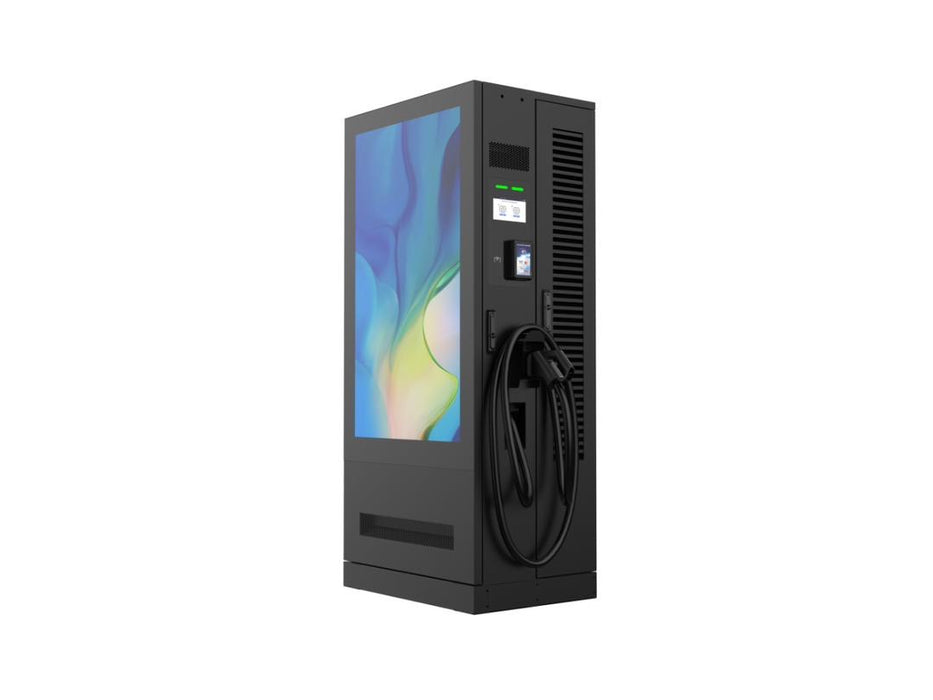

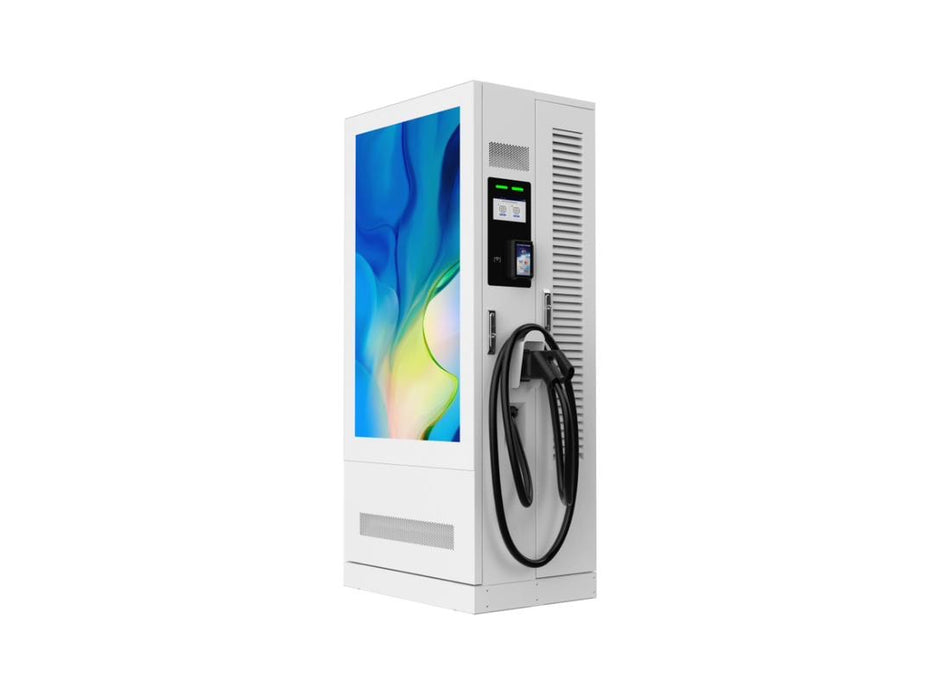

Advertising DC Fast Charger (60–240 kW)

Charge vehicles fast. Monetize every minute with a 43″ or 55″ LED ad display.

Built for outdoor commercial sites, retail centers, municipalities, and operators. Dual connectors (CCS1 / NACS) + OCPP, 4G & Wi-Fi. 480 V three-phase input (no neutral): L1-L2-L3-PE.

60–240 kW (in 30 kW steps)
43″ or 55″ Ad Screen
Dual CCS1 / NACS
OCPP 1.6J
Outdoor-rated

Configure & Buy Email: info@primecom.tech Call: 408-598-3300

Pricing & options shown above on the product page. Primecom is priced aggressively vs. competitors.

Primecom Advertising DC Fast Charger – 55 inch display

Key Benefits

True DC Fast Charging

60–240 kW power delivers rapid charge sessions and higher site throughput.

43″ / 55″ LED Ad Display

Run promotions or sell ad space; manage content via the cloud.

Dual Connectors

Any combo of CCS1 / NACS so no EV customer is turned away.

OCPP + 4G / Wi-Fi / RJ45

Open-standard networking, remote updates, and fleet/operator controls.

Outdoor-Rated & Secure

IP & IK impact protection, Smart Meter, Type A+B RCD, e-stop.

New Revenue Streams

Charge fees, sell ads, and boost on-site sales with engaging screen content.

Connector Options (Choose Two)

CCS1 (SAE Combo)

North American DC standard for most non-Tesla EVs. High current, high reliability.

Up to 300 A* 200–1000 V

NACS (Tesla-Style)

Now adopted across brands; slim, ergonomic connector. Choose one or two per unit.

Up to 300 A* 200–1000 V

*Max current depends on selected power module and cable spec.

Power & Screen Variants

Power Tiers

Select the output that matches your site requirements. Scalable in 30 kW steps.

60 kW90 kW120 kW150 kW180 kW210 kW240 kW

Advertising Display

High-brightness LED display for promotions & media. Remote content scheduling.

43″ Screen55″ Screen

Connector Layout

Mix-and-match to serve every driver.

CCS1 + CCS1CCS1 + NACSNACS + NACS

Payments & Access

OCPP-controlled pricing, RFID, app, or plug-and-charge workflows.

RFIDApp / QROCPP 1.6J

See Live Pricing on This Page Email Us Call Sales

Technical Specifications

Model

Advertising DC Fast Charger – Modular 60–240 kW

Input Power

480 VAC (±10%), 3-phase, 50/60 Hz, L1+L2+L3+PE (no neutral)

Efficiency

≥95%

Output Voltage

200–1000 V DC

Max Output Current

Up to 250 A (120–180 kW), up to 300 A (240 kW)

Max Output Power

60 / 90 / 120 / 150 / 180 / 210 / 240 kW

Connectors

CCS1 / NACS (Tesla-style), dual-gun configurable

Display

43″ or 55″ Advertising Screen (RGB LED backlit)

Cable Length

5 m standard (custom lengths available)

Start Modes

VIN/MAC address, Plug-&-Play, App, RFID, OCPP

OCPP

OCPP 1.6J

RFID

MIFARE ISO/IEC 14443A (optional)

Communication

4G / Wi-Fi / RJ45 Ethernet

Materials

Galvanized steel housing; TPU charge cables

Energy Meter

Smart Meter (integrated)

RCD

Type A+B (AC 30 mA + DC 6 mA)

Protection

Over-current/voltage, short-circuit, ground & surge protection, over/under-voltage, over/under-frequency, over-temperature

Ingress / Impact

IP-rated outdoor design; IK10 impact protection

Standby Power

< 8 W

Standards

UL 2202, UL 2231-1/-2, UL 2251; enclosure & install to NEMA standards (refs per model)

Cooling / Noise

Fan cooling; < 60 dB

Environment

Outdoor-rated; designed for wide temp & humidity range

Warranty

2 Years | Certifications: TUV, CE, RoHS, (ETL/others per configuration)

Specifications may vary slightly by configuration; Primecom sales can finalize exact model specs for your site.

High-Impact Use Cases

Retail & Grocery

Increase dwell time and promote in-store offers while vehicles charge out front.

Commercial Properties

Differentiate your site and unlock ad revenue to improve ROI on EV infrastructure.

Municipalities & Parks

Cost-offset public charging with sponsorships and community messaging on screen.

Fuel & Convenience

Capture EV drivers, upsell inside, and run dynamic promos visible from the forecourt.

Ready to turn charging into a profit center?

Configure power, connectors, and screen size – then purchase directly, or contact our team for help.
